[理工] 計組99交大資聯 Datapath問題
In a single-cycle datapath design of MIPS architecture, which of the following description is correct?
(a) The data flow of R-type instructions does not go through the data ememory.
(b) The data flow of SW goes through all components in a clock cycle.
(c) The data flow of LW goes through all components at most once in a clock cycle.
(d) The data flow of J-type instructions goes through all components.
答案: (a) (b)

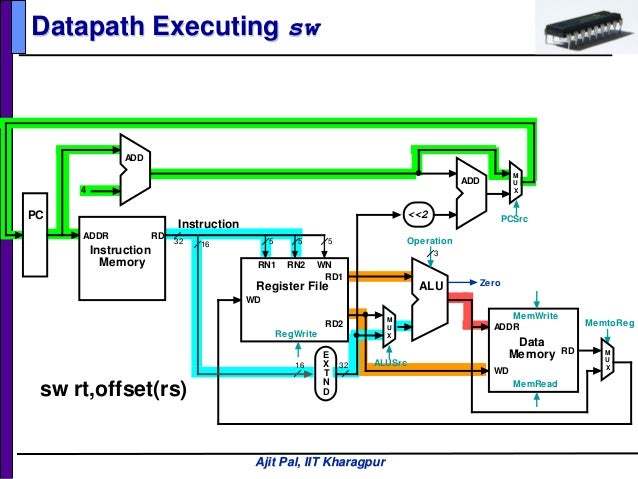

想問(b)，SW的data flow如下圖
https://imgur.com/YchMDiA
沒有經過branch的那個adder，那這樣應該就不是go through "all" components了吧?
另外想請問(c)錯是因為把data從Memory write back回Register File，這樣就會經過Register File"第二次"，所以"at most once"是錯的，這樣子嗎?
